I. Core Structure and Materials

Sheet Layer: Made of high-molecular polymer (HDPE/PP) through high-strength stretching, possessing high tensile strength and low elongation.

Welded Joints: The sheets are ultrasonically or thermally welded to form a stable honeycomb-like cell structure. The joints exhibit high connection strength, with a peel force ≥60KN/m and a shear strength ≥80KN/m.

Three-Dimensional Structure: When unfolded, it forms a continuous three-dimensional mesh cell structure. The spatial constraint effect of the combination of planar and vertical surfaces enhances the confinement of the filler.

II. Specifications (Mainstream)

Item | Parameter Range

Cell Height | 50mm ~ 300mm

Welding Spacing | 330mm ~ 1600mm

Sheet Thickness | 1.0mm ~ 1.7mm

Material | HDPE (High-Density Polyethylene) / PP (Polypropylene)

Color | Black (Contains ≥2% Carbon Black, UV Resistant)

III. Core Advantages (Compared to Traditional Planar Reinforcement)

Three-Dimensional Reinforcement: Upgraded from traditional planar reinforcement to three-dimensional reinforcement, its lateral confinement and stiffness far exceed those of planar materials such as geogrids.

Strong Lateral Confinement: The honeycomb-like cell structure creates strong lateral confinement forces on the infill material, significantly improving load-bearing capacity and load dispersion.

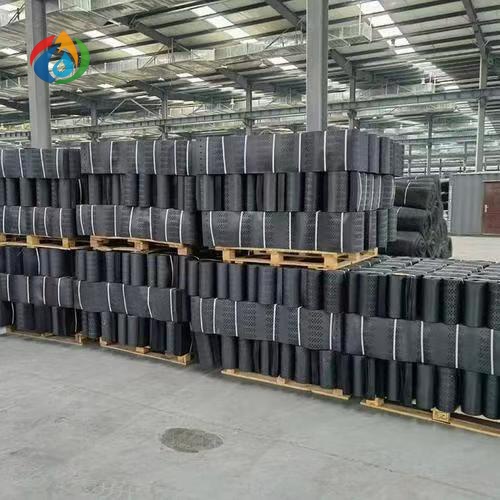

Flexible and Convenient Transportation: Can be folded and transported, greatly saving transportation space and costs; ready for use on-site.

High Joint Strength: Ultrasonic/thermal welding joints are strong and stable, with no metal connectors, ensuring high long-term connection strength and preventing movement.

Weather and Corrosion Resistance: Lightweight, wear-resistant, resistant to acids, alkalis, and salt corrosion; will not hydrolyze even after long-term use in aquatic environments.

Locally Sourced Materials, Economical and Efficient: Can utilize locally sourced sand, gravel, soil, and other filling materials, significantly reducing material transportation costs.

IV. Applicable Scenarios

Highways and Railways: Soft soil foundation treatment, abutment backfilling, loess collapsible subgrade treatment, saline/expansive soil subgrade reinforcement

Water Conservancy Projects: River channel management, riverbed and bank management, shallow river channel management, soil erosion prevention

Slope Management: Slope protection, landslide prevention, ecological retaining wall construction

Special Foundations: Treatment of adverse foundations such as deserts, swamps, tidal flats, frozen soil, and collapsible loess

Other Fields: Supporting pipelines and sewers, wharf breakwaters, independent walls, airports and ports, etc.

V. Construction Key Points

Foundation Preparation: Clean, level, and compact the foundation ground, ensuring no sharp obstacles.

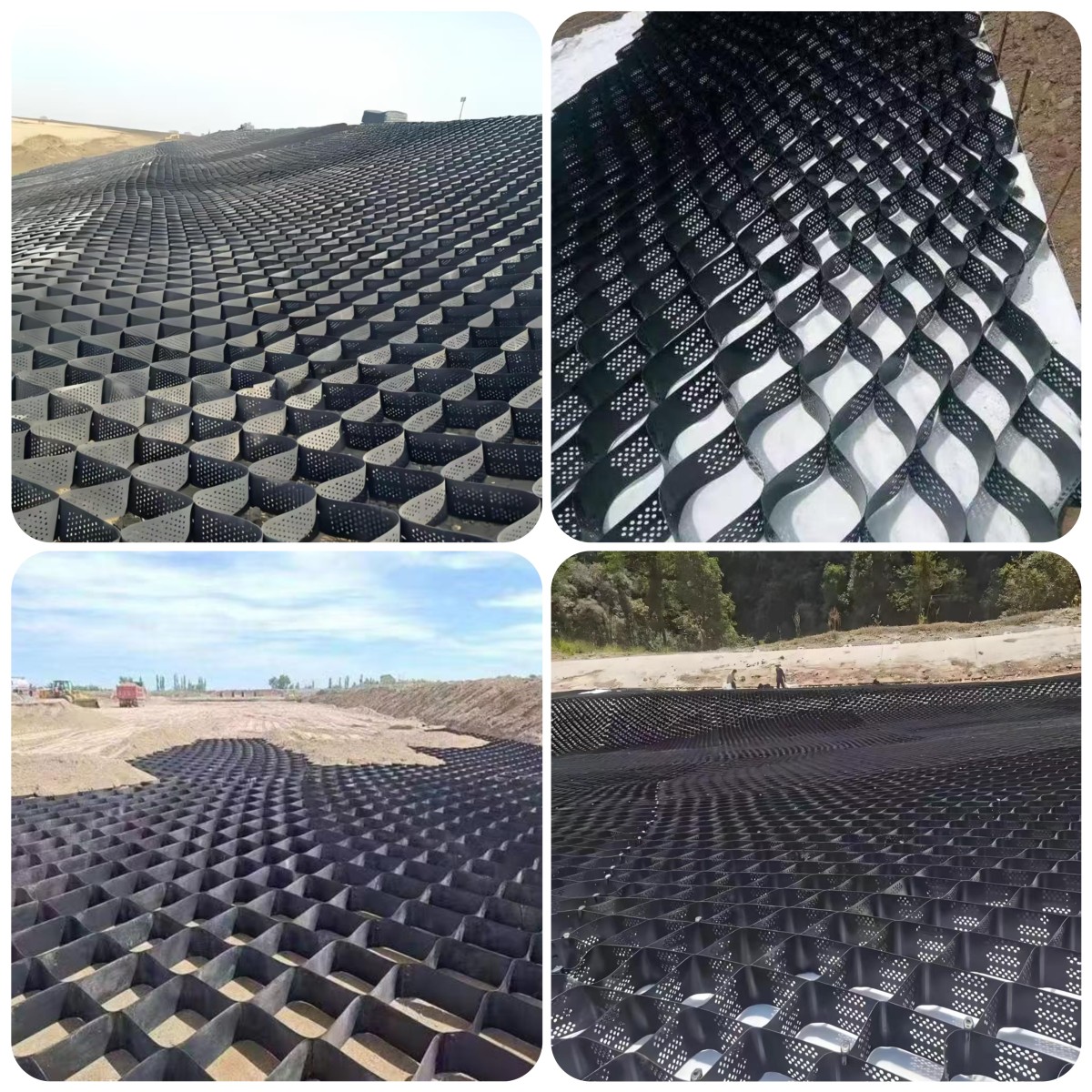

Cell Deployment: Transport the collapsed geocells to the site and tension and deploy them into a honeycomb-like three-dimensional grid.

Anchoring and Fixing: Secure the deployed cells around their perimeter using U-shaped nails or anchor rods, ensuring the cells are fully deployed and do not twist.

Filling: Soil, gravel, concrete, or other fillers are added to the cell units, filling in layers and compacting.

Surface Treatment: After filling, the surface is leveled and compacted to form a stable, integrated structural layer.

VI. Selection Recommendations

By Height: 50-100mm is suitable for slope protection and shallow reinforcement; 150-200mm is suitable for roadbed reinforcement and load-bearing projects; over 200mm is suitable for heavy-load and high-fill projects.

By Welding Spacing: Small spacing (330-500mm) is suitable for fine reinforcement; large spacing (500-1600mm) is suitable for large-volume filling projects.

By Material: HDPE material has excellent resistance to environmental stress cracking and is suitable for aquatic environments and harsh geological conditions; PP material offers high cost-effectiveness and is suitable for general projects.

By Sheet Thickness: 1.0-1.3mm is suitable for general projects; 1.3-1.7mm is suitable for heavy-load and high-strength projects.
